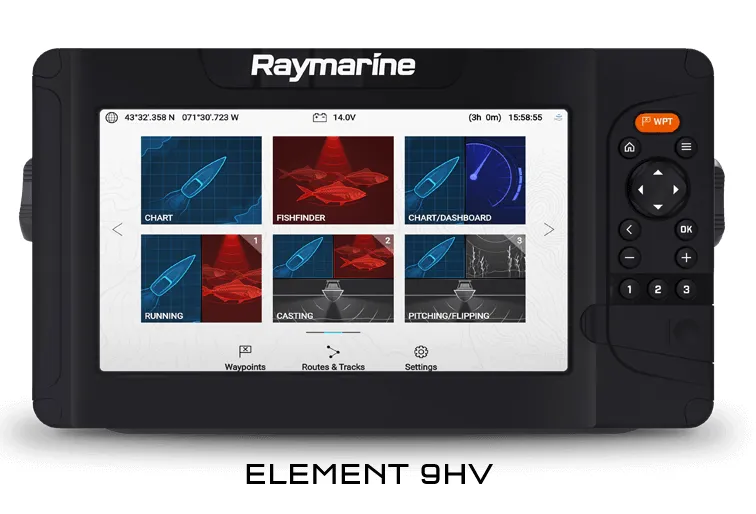

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.
Built for anglers that want to be one step ahead of the game, Element delviers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar. HyperVision take DownVision, SideVision and Raymarine RealVision 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation and fish with lifelike clarity.
In the Box
- Trunnion bracket with mounting hardware
- Surface mount kit with mounting hardware
- Sun cover
- Power / NMEA2000 1.5m cable
- Documentation pack
- Cartography: Navionics Australia & New Zealand Chart
- HV-100 Transucer with 6m cable
- Transom bracket with mounting hardware
- P-clips with mounting hardware (x5)
- Escutcheon plate with mounting hardware
Features
- Sunlight viewable displays with integrated GPS/GNSS receiver.
- 1.2 megahertz CHIRP sonar technology
- All-in-one Transducer (Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation)
- RealVision 3D Built-In (Accurately identify the location of ledges, channel beds, and other contour changes)
- Fast Quad-Core Processor (For instantaneous chart re-draw and sharp 3D imaging)
- Simple LightHouse Sport Operating System
- Intuitive Controls
- Smart Mapping (With Support for Raymarine LightHouse NC2 charts with Fishing Hot Spots, Navionics and C-Map)
- Make Your Own Maps (Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support)
Specifications
- Display Size: 9.0" Optically Bonded LCD
- Display Resolution: 800 x 480 WVGA
- Display Type: Non-Touch
- Brightness: 1,500 nits
- Viewing Angle: Top 50° / Bottom 60° / Left 70° / Right 70°
- Overall Dimensions (W x H x D): 287 x 161 x 62mm (11.3 x 6.3 x 2.4 inches)
- Product Weight (lbs): 5.0
- Water Ingress Protection: IPx6 and IPx7
- Operating Temperature Range: -25°C to 55°C (-13°F to 131°F)
- Storage temperature range: -30°C to 70°C (-22°F to 158°F)
- Voltage: 12V DC (8V to 16V DC)
- Power Consumption (max 12V DC): 20 Watts
- GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS
- Sonar Type: Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
- Sonar Connection: 15 pin HyperVision™ type connector
- Sonar Depth: CHIRP Sonar = 274m (900 feet)
- DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m (100 feet)
- SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100 feet)
- RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper = 30m (100 feet)
- Ethernet: N/A
- NMEA0183: N/A
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- Supported NMEA2000 Networking:
- INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization)
- OUTPUT: GPS (for VHF Distress and DSC)
- SeaTalk: Requires A06045 DeviceNet female (F) adapter cable - 400mm
- USB N/A
- Wi-Fi WiFi: 802.11 b / g / n
- BlueTooth: Bluetooth 4.0 Low Energy Power Class 1.5
- Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX , and compatible with all charts listed on Raymarine Chart Store
- Tides & Currents: Requires LightHouse LNC2, Navionics or C-MAP
- Waypoint / Routes / Tracks: 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
- Internal Memory: 8GB Solid State
- External Memory: 1 x microSD slots - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
