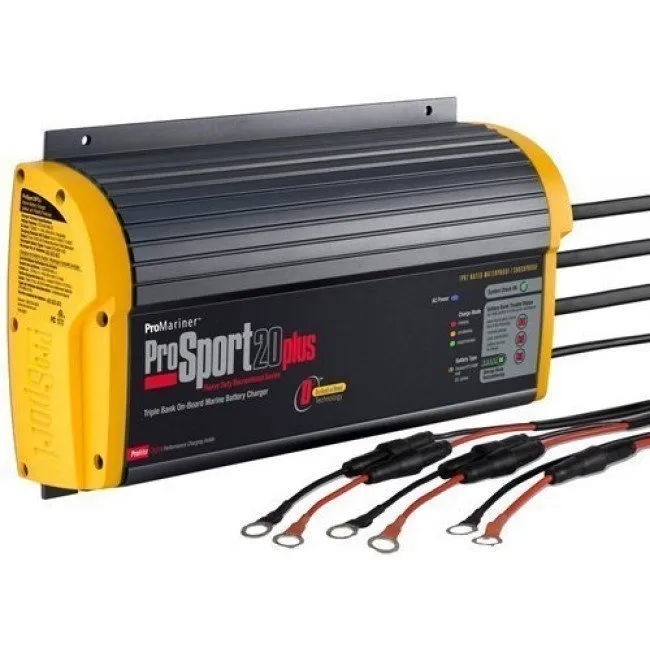

ProMariner ProSport 20 Gen3 AC240v-12-36vDC Battery Chargers deliver fast efficient charging, with an advanced energy-saving mode. Ideal for 36V Minn Kota Motors.
The charger incorporates all-digital micro-processor control, with 2 digitally selectable charge profiles - including a once-a-month storage reconditioning for maximum battery life and performance.
After fully charging and conditioning batteries, ProSport's Energy Saver Mode will monitor and Auto Maintain batteries only when needed to maintain a full state of charge, resulting in maximum reserve power performance and lower AC power consumption and operating costs.
Like no other, the new ProSport Series also provides automatic installation feedback with its exclusive "System Check OK" and individual "Battery Bank Trouble" LED indicators.
Key Features
- 100% waterproof and shock-proof- Pre-wired for easy installation
- Ideal for 36V Minn Kota Motors
- Compact and rugged extruded aluminum design
- Dual in-line DC safety fuses for trolling motor and house battery banks
- Energy Saver Mod
Other Features
- Built-in over-voltage, overload, over-temperature, reverse polarity and ignition protection- 40% lighter than older technology epoxy filled chargers - cooler operation and greater reliability
- ProMar Digital Technology: Delivers fast efficient charging in a lightweight design
- Distributed-On-Demand Technology: Automatically charges and maintains your engine crank battery while distributing all remaining charging Amps to Trolling motor or house battery(s)
- System OK and Battery Bank Trouble Status Indicators: Advanced technology eliminates time consuming troubleshooting by clearly indicating system and battery connections are OK, or if a fault is present on a specific battery bank
- Storage Recondition Mode: During short or long-term storage, ProSport automatically reconditions all batteries on board once a month for maximum battery life and performance
- Digital LED Display and Battery Type Selector: LED indicators for Charging, Conditioning and Auto Maintain modes in addition to AC power and selected battery type (2 charge profiles to choose from - with a 3rd high performance AGM HP profile on ProSport20 Dual only).
- Digital Multi-Stage Performance Charging: Fully charge and extend the life of your batteries - automatically charges, conditions and safely maintains all batteries on board for maximum time on the water.
Specifications
- Suits 12/ 24/ 36V DC systems- 20 Amps
- Number of Batteries: 3 Banks
- Global AC in (PFC): 100-260V AC 50/60 Hz
- 1.8m DC output cable
- 3.6m AC input cable
